Self Adhesive Membrane

Self Adhesive Membrane

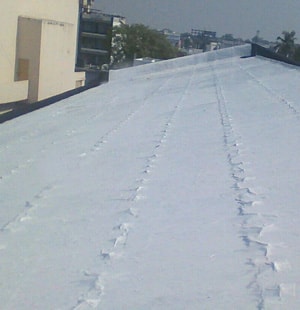

Self Stick Membranes are self-adhesive water proofing membranes used in Terraces, Basements, Bridges, Metal roofs, Floorings, and sub-structures. It can be applied to foundation walls, tunnels, earth sheltered structures and split slab construction.

Self Stick Membrane is 0.5mm, 1mm and 1.5mm thick, 1.0 mtr wide and 15mtrs long and is supplied in rolls. It is unrolled sticky side down onto concrete slabs or applied onto vertical concrete faces primed with self stickprimer.Continunuity is achieved by overlapping a minimum 50mm to 75mm side lap & 100mm to 150mm end lap and firmly rolling the joint.


SURFACE PREPARATION

Surfaces should be structurally sound and free of voids, loose aggregate and sharp protusions. Remove contaminants such as grease, oil and wax from exposed surfaces. Remove dust, dirt, loose stone and debris. Protect Self Stick membranes to avoid damage from other matters, construction materials or backfill.

STORAGE

Self Stick membranes to be stored vertically in well covered and ventilated area not subjected to direct sunlight.

ADVANTAGES WE OFFER

  • Waterproof – high hydrostatic head resistance

  • Cold applied – no flame hazard;self-adhesive overlaps ensure continuity

  • Flexible – accomodates minor

  • Controlled thickness – factory made sheets ensures constant, non-variable site application

  • Protection Boards of thickness 1mm to 5mm and size 1meter x 2meters each.

  • Anti root SELF STICK membrane.

  • Colored top emulsions for SELF STICK top layer – Silver, Terracoat, Red, Green, and Blue.

  • Cross laminated film – provides dimensional stability, high tear strength, puncture and impact resistance

  • Chemically resistant – provides effective external protection against aggressive soils and ground water.

  • Settlement & shrinkage movement

  • Self Stick Bitumenous Primer which absorbs moisture and can be applied to green concrete & damp surfaces.

  • Double side self-stick membrane.

  • Wide application window – Self stick is extremely flexible. It is capable of bridging shrinkage cracks in the concrete and will accomodate minor differential movement throughout the service life of the structure.

PHYSICAL PROPERTIES

Color

Typical Value – Dark Blue Silver, Green, Black

Test Method –

Roll Size, mtrs

Typical Value – 1×15 & 1×10


Test Method – UEAtc.M.O.A.T.30

Thickness, mm/Kg.

Typical Value – 0.5mm/16Kg., 1.0mm/20Kg 1.5mm/28Kg., 2mm/35Kg.

Test Method – ASTM D3767

Softening Point.DegC

Typical Value – 110 ± 10°C
Test Method – ASTM D3767

Tensile strength, Long./Trans.N/5cm

Typical Value – ≥ 1000/1000
Test Method – ASTM D412

Elongation

Typical Value – > 300% & >1500% (compound)
Test Method – ASTM D412

Crack Cycling 100 cycles

Typical Value – Unaffected
Test Method – ASTM C836

Lap adhesion, N/mm

Typical Value – 2.2
Test Method – ASRM D1876

Peel strength, N/mm

Typical Value – 1.8
Test Method – ASTM D903

Puncture Resistance, N

Typical Value – ≥ 200N
Test Method – ASTM E154

Resistance to hydrostatic head

Typical Value – 60 m(200ft) of Water
Test Method – ASTM D5385

Water absorption

Typical Value – 0.1% maximum
Test Method – ASTM D570

Flexibility-bend over 25mm mandrel [0 to -5°C]

Typical Value – Unaffected
Test Method – ASTM D4586
